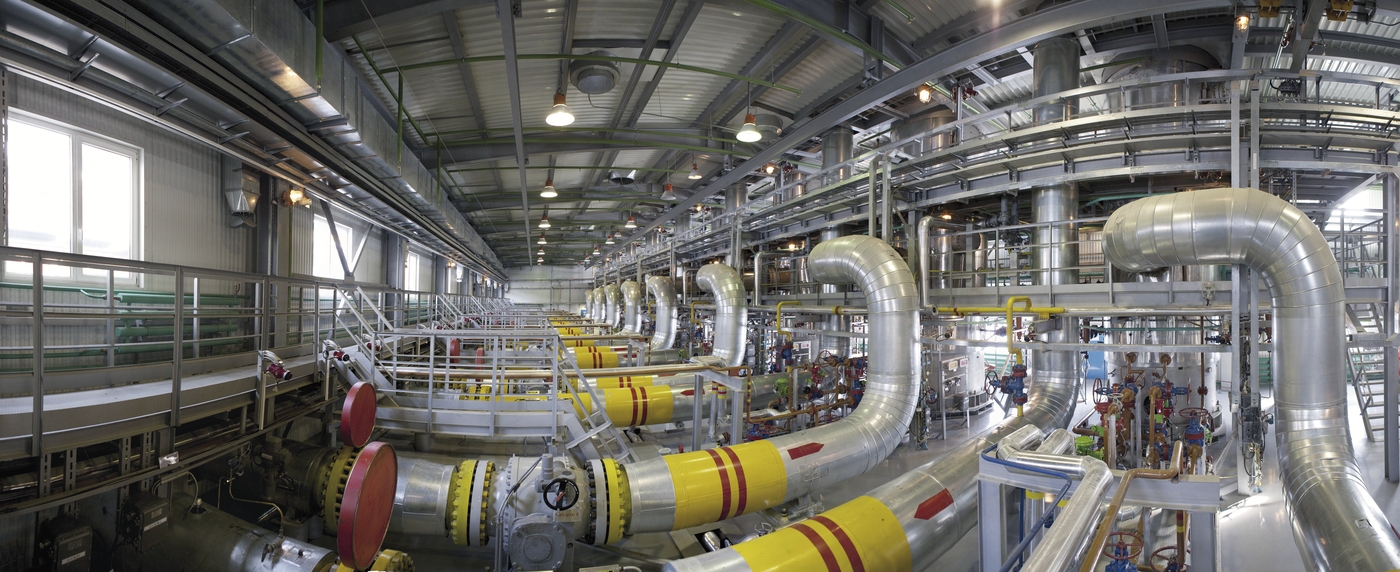

Ebla Gas Facility
Discipline:
Front-End Engineering
Client:
Petro-Canada (Palmyra) BV
Location:
Central Syria
Front End Engineering Design of gas gathering system, pipelines and gas treatment/LPG extraction plant. Design, tendering & award of long lead packages.
Preparation of ITT package for subsequent EPCC.
The ODE Scope of Work consisted of project management & project control services, all engineering from the wellheads via the gas gathering station and gas treatment plant through to export, including all hydrocarbon carrying/ produced water injection
(1x4", 5km) and raw water pipelines (2x4", 5km). The total man-hours for the FEED scope was 70,500 hours.
The work entailed:
- Process selections & design of gas facilities, including LPG extraction, by either refrigeration, or turbo-expander process
- Flow assurance design of well flowlines and pipeline, which included line size selection and slug catcher sizing & configuration
- Materials selection for all facilities & equipment
- Site selection of GGS/GTP and route selection for flowlines & pipeline
- All plant layouts and infrastructure & amenities and construction requirements
- Civil buildings & preparatory works design
- Mechanical, electrical, instrumentation & control and telecommunications design of complete plant & systems
- Full HSE scope; including HAZID, HAZOP & SIL analysis.
- Preparation of long lead item requisitions and ITT packages, tendering, evaluation & completion of purchase orders
- Preparation of EPCC tender package for full field development through to start-up & hand-over
General design premise:
- Gas production 80 MMscfd (DCQ), peak 96 MMscfd
- Max. oil production 640 m3/d (4000 bbl/d)
- Max. total production (oil and water) 720 m3/d (4530 bbl/d)
- Max. water production 400 m3/d (2515 bbl/d)
